UCX-3x3-TPX-RX20

SKU: 91310100

Shipping

Interested in this product?

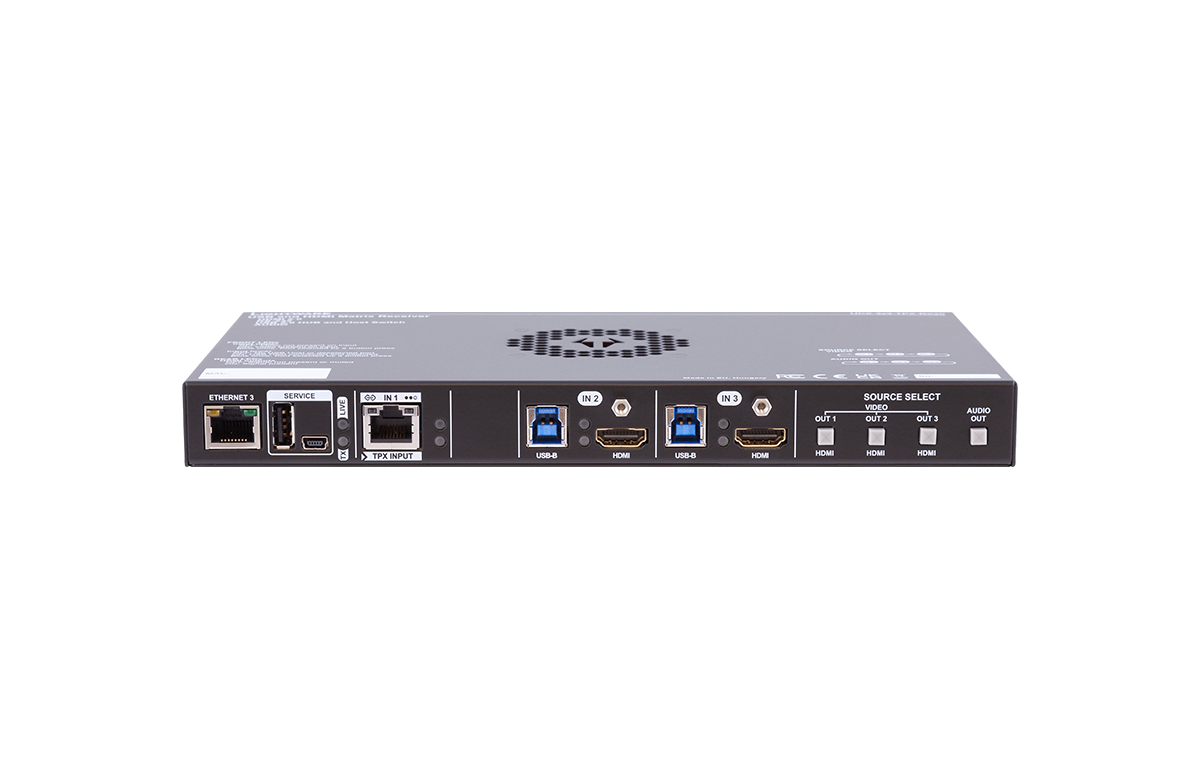

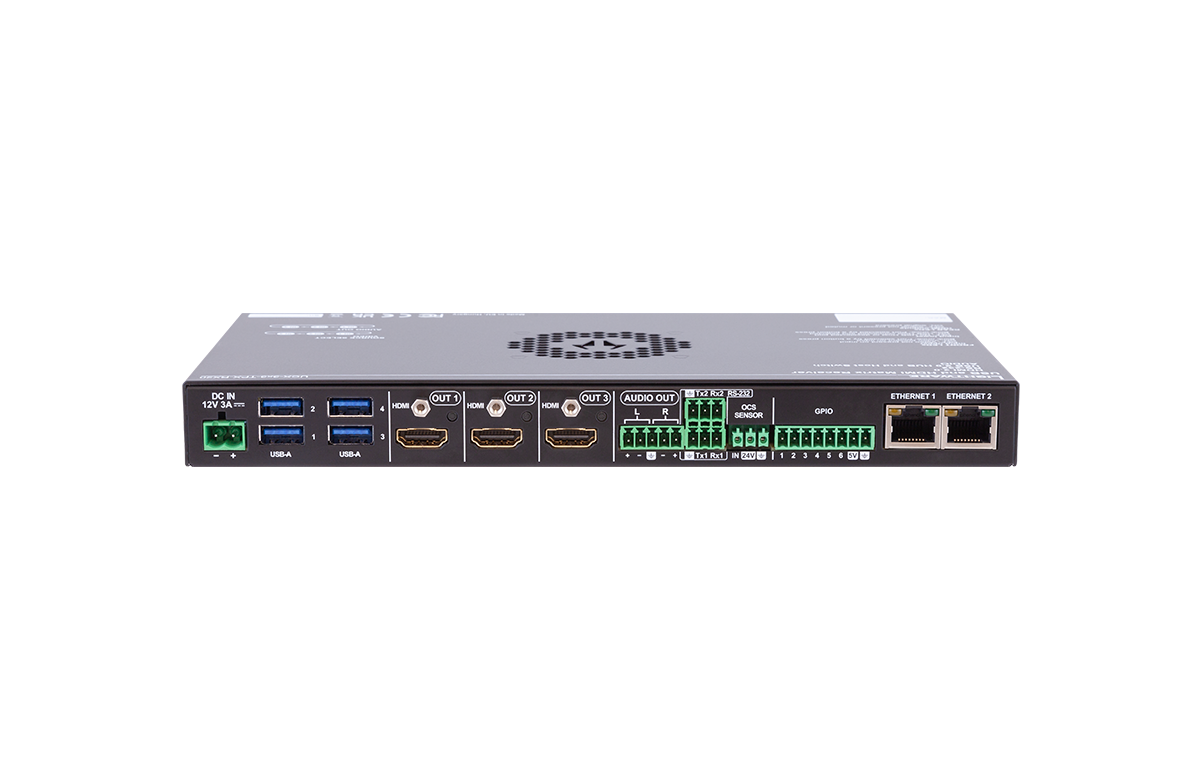

UCX Matrix Switcher receiver is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management and connectivity. Also supports HDMI and USB host connectivity for room equipment.

Details

Education

Building Advanced Learning Environments

Lightware enables efficient, sustainable AV solutions for hybrid learning in modern education

Green Policy

Lightware’s commitment to environmental sustainability: Prevent and minimize pollution from manufacturing, packaging and daily operation

Learn More

Test

test324

Device	Optical Connectors	Power Inlet	Ethernet	HDMI Ports	Serial port	USB
HDMI20-OPTC-TX/RX220-Pro	1x Neutrik OpticalCON DUO	IEC 60320-C14	2x EtherCON for Gigabit Ethernet (control & pass-through)	TX: 2x HDMI 2.0 input (18G) and 1x HDMI 2.0 output (18G) RX: 2x HDMI 2.0 output (18G) and 1x HDMI 2.0 output (9G)	D-SUB 9 male (DE-9M) for RS-232 (control or pass-through)	Mini USB B
HDMI20-OPTC-TX/RX220-NTQ	1x Neutrik OpticalCON Quad
HDMI20-OPTC-TX/RX220-FOX	1x Fiberfox
HDMI20-OPTC-TX/RX220-PCN	1x Neutrik OpticalCON DUO	Neutrik Powercon True1

Specifications
Max Video Data rate	18 Gbps
Max Resolution	Up to 4K UHD 3840×2160@60Hz
Video delay	0 frames
HDR Modes	HDR 10, HDR 12 and Dolby Vision
HDCP	HDCP 2.2 compliant
EDID emulation	Advanced EDID Management
EDID memory	Factory preset and user-programmable
EDID support	256 byte Extended EDID
Front panel control	Jog Dial and select button on TX Select button on TX Function button on RX
Visual feedback on TX and RX units	LCD menu for EDID setup and status check on TX.
TX status LEDS	POWER/LIVE FIBER LINK HDCP INPUT 1 INPUT 2
RX status LEDs	POWER/LIVE FIBER LINK HDCP SIGNAL PRESENT OUTPUT CONVERSION
RS-232 pass through	Bi-directional 9.6, 14.4, 19.2, 38.4, 57.6 kBauds
Fiber	LC duplex, LC simplex for channel breakout
Laser wavelengths	6 channel CWDM
High speed lanes	778; 801; 824; 850 nm
Low speed lanes	911; 980 nm
Laser class specification	Class 3R
Power supply	Internal AC/DC power supply
Enclosure	bottom and back 1 mm metal, top and front 1,5 mm metal
Dimensions	1RU height x ½ rack width
Compliance	CE
Warranty	3 years

Maximum Extension Distances
Resolution	Pixel Clock	OM1	OM2	OM3	OM4
1280x720p60	74 Mhz	800 m	1000 m	2500 m	2500 m
1920x1080p60	148.5 MHz	500 m	1000 m	2500 m	2500 m
3840x2160p30 (4k30 4:4:4) 3840x2160p60 (4k60 4:2:0)	297 MHz	200 m	600 m	1500 m	1500 m
3840x2160p60 (4k60 4:4:4) 4096x2160p60 (DCI 4K60)	594 MHz	Not supported	300 m	700 m	700 m

Device	Optical Connectors	Power Inlet	Ethernet	HDMI Ports	Serial port	USB
HDMI20-OPTC-TX/RX220-Pro	1x Neutrik OpticalCON DUO	IEC 60320-C14	2x EtherCON for Gigabit Ethernet (control & pass-through)	TX: 2x HDMI 2.0 input (18G) and 1x HDMI 2.0 output (18G) RX: 2x HDMI 2.0 output (18G) and 1x HDMI 2.0 output (9G)	D-SUB 9 male (DE-9M) for RS-232 (control or pass-through)	Mini USB B
HDMI20-OPTC-TX/RX220-NTQ	1x Neutrik OpticalCON Quad
HDMI20-OPTC-TX/RX220-FOX	1x Fiberfox
HDMI20-OPTC-TX/RX220-PCN	1x Neutrik OpticalCON DUO	Neutrik Powercon True1
